NEW SUNWAY Portable UPS solar generator Power Station Model QH-033

NEW SUNWAY Portable UPS solar generator Power Station Model QH-033

تفاصيل المنتج:

مكان المنشأ: الصين
اسم العلامة التجارية: SUNWAY
رقم الموديل: QH-033

شروط الدفع والشحن:

الحد الأدنى لكمية: 5
الأسعار: 550
تفاصيل التغليف: حالة خشبية
وقت التسليم: 7
شروط الدفع: T/T ، Western Union ، Moneygram
افضل سعر اتصل

معلومات تفصيلية
تطبيق: المنزل وقت العمل (ح): 8-20H
جهد الإخراج (V): تيار مستمر 12 فولت، 12 فولت/5 فولت طاقة التحميل (W): 3000W
بطارية: 3 كيلووات ساعة أو 5 كيلووات ساعة
إبراز:

Solar Generator Power Station,Portable UPS solar generator,Portable UPS Solar Generator

,

Portable UPS solar generator

,

Portable UPS Solar Generator

منتوج وصف

NEW SUNWAY Portable UPS Power Station (Model: QH-033)

Your Go-To Choice for Off-Grid Living, Emergency Backup & Outdoor Adventures


Product Overview



Meet the QH-033—a space-saving, high-capacity portable power solution that works seamlessly as a dependable Solar Generator. It combines durable, secure lithium iron phosphate (LiFePO₄) batteries with a high-performance pure sine wave inverter, enabling smooth conversion of DC power to consistent AC power. Alongside stable 5V and 12V DC output, this unit serves as a top-tier Home Backup Power and Emergency Power Supply for homes facing grid outages, while also standing out as a practical Camping Portable Power Station and RV Portable Power companion for outdoor pursuits like camping, RV travels, and field operations.

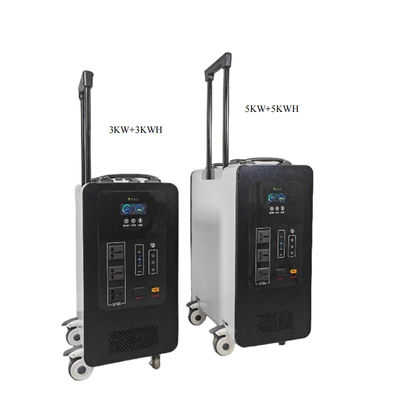

This detailed specification focuses on the QH-033 model, offered in two flexible configurations:
  • AC 3KW Inverter paired with DC 3KWh Energy Storage
  • AC 5KW Inverter paired with DC 5KWh Energy Storage
  • NEW SUNWAY Portable UPS solar generator Power Station Model QH-033 0

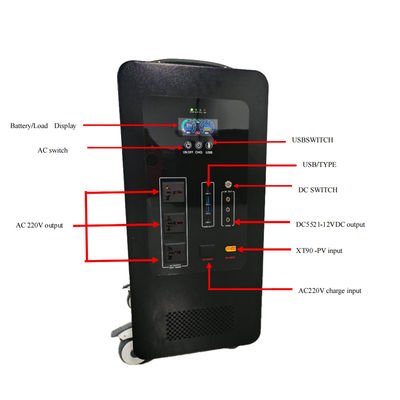

Key Functional Components

  • Color Panel Display:

Offers precise real-time data—remaining battery capacity, load consumption, and device temperature—essential for managing power efficiently in emergency situations or during camping trips.

  • AC Switch:

Features ON/OFF/CHG modes for straightforward control of 220V AC output, whether used as a home backup solution or outdoor power source.

  • USB/DC Switch:

Enables independent control of USB/TYPE-C and 12V DC ports, minimizing unnecessary power drain during off-grid use.

  • AC 220V Output Port:

Positions this unit as a versatile Portable Power with AC Outlet, delivering continuous 3KW/5KW power to run AC devices like laptops, small refrigerators, and camping lighting.


  •  DC5521-12VDC Ports:

Equipped with 3 x 12V/5A interfaces, ideal for powering 12V gadgets such as car chargers and RV accessories when used as RV Portable Power.


  • USB/TYPE-C Ports:

Includes 2 USB and 2 TYPE-C ports (5V/18W total) for fast charging of smartphones and tablets—indispensable for camping or emergency scenarios.


  • XT90-PV Input:

Compatible with 18V-80V solar panels (supporting up to 2500W/3000W), enhancing its capabilities as a Solar Generator for eco-friendly off-grid charging.


  • AC 220V Charge Input:

Accepts 220V-240V AC power (1000W/5A) for rapid recharging, perfect for prepping the unit as Home Backup Power ahead of potential storms.

  • Pure Sine Wave Inverter:

Boasts 3500W max (3000W rated) or 5500W max (5000W rated) output, delivering stable power that’s safe for sensitive electronics—critical for both Home Backup Power and RV Portable Power use.


  •  LiFePO₄ Battery Pack:

Available in 25.6V 120Ah (3072Wh) or 25.6V 200Ah (5120Wh) options, offering high energy density for extended runtime in camping or off-grid settings.


  • High-Speed Silent Fan:

Ensures efficient heat dissipation with minimal noise, avoiding disruption during home use or outdoor adventures.


  •  Built-in MPPT Solar Controller:

Optimizes solar energy absorption (18V-80V input, 600W/1000W rated), a key feature that elevates its performance as a Solar Generator.



NEW SUNWAY Portable UPS solar generator Power Station Model QH-033 1



Detailed Technical Specifications



Parameter Category 3KW + 3KWh Configuration 5KW + 5KWh Configuration (Reference)
Built-in Lithium Battery Pack Lithium Iron Phosphate: 25.6V 120Ah 3072Wh Lithium Iron Phosphate: 25.6V 200Ah 5120Wh
Inverter Performance Rated 3000W, Max Instantaneous Peak: 3500W, Pure Sine Wave Rated 5000W, Max Instantaneous Peak: 5500W, Pure Sine Wave
AC Charging Input: AC 220V-240V 50/60Hz, 750W; Charging Time: 4-5h Input: AC 220V-240V 50/60Hz, 1000W; Charging Time: 5-6h
Solar Charging (MPPT) Input Voltage: 18V-80V, 600W; Supports up to 2500W solar panels Input Voltage: 18V-80V, 1000W; Supports up to 3000W solar panels
DC Output 3 x 12V/5A (DC5521) + 4 x 5V/18W (2 USB + 2 TYPE-C) 3 x 12V/5A (DC5521) + 4 x 5V/18W (2 USB + 2 TYPE-C)
Protection Features Overheat (≥85℃), AC Overload (≥3500W), Short Circuit, Overcharge/Over-Discharge Overheat (≥85℃), AC Overload (≥5500W), Short Circuit, Overcharge/Over-Discharge
Operating Conditions Discharge: -10℃ to 55℃; Charging: 0℃ to 45℃ Discharge: -10℃ to 55℃; Charging: 0℃ to 45℃
Dimensions & Weight 610×350×280mm, 37.5kg 650×380×300mm, 52kg


Important Notes

  • All-Scenario Safety:

Keep the unit away from rain, water, and extreme temperatures (humid or flammable environments) to prevent malfunctions—critical for both Home Backup Power and Camping Portable Power Station applications.

Solar Charging Compatibility:

As a dedicated Solar Generator, only use 18V-80V solar panels (maximum 2500W for 3KW models, 3000W for 5KW models) to avoid damaging internal components.



      2.Home Backup Readiness:



For reliable Emergency Power Supply performance, maintain the battery at 50%-70% charge when not in use and store it in a dry, well-ventilated area with temperatures between 15℃-25℃.



       3.Load Management:



Do not exceed the rated AC output (3000W for 3KW models, 5000W for 5KW models). Overloading will activate the protection mechanism, potentially causing power interruptions during critical use in RV or home backup scenarios.



Q&A (Frequently Asked Questions)

1. Can the QH-033 power my home appliances during a blackout?



Yes. The 3KW model powers small to medium appliances (fridges, microwaves, LED lights) simultaneously, while the 5KW model handles larger loads (mini air conditioners, washing machines). Check your appliance’s power rating to ensure it doesn’t exceed the unit’s rated output (3000W/5000W).


2. Do I need a specific type of solar panel to charge the unit?

No—any 18V-80V solar panel (monocrystalline/polycrystalline) works. The 3KW model supports up to 2500W panels, and the 5KW model up to 3000W. For best results, use panels with matching voltage to maximize the MPPT controller’s efficiency.


3. How long does the battery last before needing replacement?

The LiFePO₄ battery offers over 2000 charge-discharge cycles (to 80% capacity). With regular use (1-2 cycles/week), it can last 8-10 years—much longer than standard lithium-ion batteries.


4. Is the unit safe to use indoors?

Absolutely. LiFePO₄ batteries are non-toxic and resistant to thermal runaway, and the built-in overheat/short-circuit protection ensures safety. Keep it in a well-ventilated area (avoid closed cabinets) during high-load use.


5. Can I charge the unit via AC and solar at the same time?

Yes. The QH-033 supports dual charging (AC + solar), which shortens the full charge time. For example, the 3KW model can fully charge in 1.5-2 hours with both AC and 2500W solar input.


6. What should I do if the unit shuts down unexpectedly?

Most shutdowns are triggered by protection mechanisms (overload, overheat, low voltage). Check:
  • If the load exceeds the rated output (unplug non-essential devices).
  • If the unit’s temperature is too high (move to a cooler area).
  • If the battery is under-voltage (recharge immediately).
    If issues persist, contact customer support.
  •

7. Is the QH-033 compatible with RV hookups?

Yes. It’s designed as a dedicated RV Portable Power solution—connect via the 12V DC ports (for RV accessories) or AC 220V output (for larger RV appliances). Its compact size fits easily in RV storage compartments.
